Canon imagePROGRAF PRO-2600

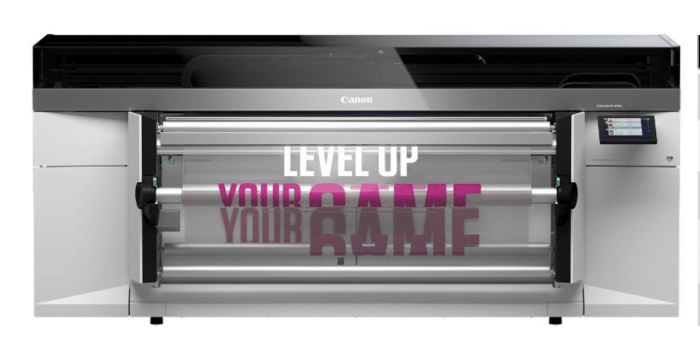

Canon Colorado M-series

A fully modular UVgel roll-to-roll printer for large format graphics. Configure the system to your needs, and upgrade later as your business grows. There are many opportunities to explore, including mixed gloss/matte printing and white ink.

Product Enquiry
Compare
Add to wishlist
Category:
Description

Description

Printing

  • Printing Method
    UVgel piezoelectric inkjet
  • Printing Modes
    Printing modes gloss
    111 m2/hr – Gloss High Key
    78 m2/hr – Gloss Express
    55 m2/hr – Gloss Speed
    39 m2/hr – Gloss Production
    29 m2/hr – Gloss High quality
    22 m2/hr – Gloss Premium
    19 m2/hr – Gloss Specialty

    Printing modes matte
    36 m2/hr – Matte Express
    27 m2/hr – Matte Speed
    22 m2/hr – Matte Production
    18 m2/hr – Matte High Quality
    13 m2/hr – Matte Speciality
    18 m2/hr – Backlit
    10 m2/hr – Backlit Density

    Printing mode mixed matte/gloss
    7 m2/hr – FLXfinish+

  • Print Resolution
    Up to 1,800 dpi
  • Ink Types
    Canon UVgel 460 ink
  • Ink Colour
    CMYK
  • Ink Packaging
    1 x 0.7 litre ink bottle. Ink reservoir can accommodate up to 1.8 litre per ink colour. Refill while printing
  • Printheads
    UVgel 425 printheads. High frequency drop-on-demand piezo-electric printhead. PAINT (Piezo Acoustic Integrated Nozzle Technology) constantly monitors and compensates for nozzle failures that can occur during printing.
  • Automatic Maintenance
    Eliminate daily manual maintenance tasks to save operator time
  • Curing
    UV LED

Media

  • Roll Width
    Up to 1,625 mm
  • Print Margin
    5.3 mm1
  • Roll Weight
    Up to 50 kg
  • Roll Diameter
    Up to 220 mm
  • Media Thickness
    Up to 0.8 mm
  • Media Input
    Print side out. Automatic and manual feed. Print side in2. Double sided printing3
  • Number of Input Rolls
    1 or 24(automatic roll-feeding and -switching depending on media used)
  • Media Take-Up System
    Both loose and tight winding possible

Technology

  • Technology
    UVgel technology – instant pinning and dot gain control.
    Low temperature curing – suitable for thin and heat-sensitive media
    Outstanding scratch resistance
    Easy lamination, smooth ink film
    High precision colour-matching and consistency
    Odourless and instant dry printout

FLXfinish+

  • FLXfinish+5
    Choose the right finish for your applications: velvety matte, vibrant gloss, or both combined in one print

Certifications

  • Environmental & Safe Use
    Indoor AgBB, GREENGUARD Gold, CE EN 15102 (decorative wall coverings), ASTM F793 Type II, M1, B-s1d0, Émissions dans l’air intérieur A+
  • Media
    Avery Dennison ICS Warranty, 3M™ MCS™ Warranty

Interface

  • Interface
    Ethernet (100/1,000 Mbit/s)

Dimensions

  • Printer (W x D x H)
    3,020 x 1,095 x 1,300 mm

Weight

  • Printer
    750 kg

Working Environment

  • Operation Printer
    18 – 30°C (recommended 20 – 27°C). 20 – 80% RH (no condensation)

Power

  • Consumption
    0 W – Off, 250 W – Standby, 1.6 kW – Ready, 2.3 kW – Printing
  • Source
    2 inputs, each 200-240V +/- 10%, 50/60 Hz, 16/6 A. Printer is declared under Radio Equipment Directive (RED)- 2014/53/EU

Regulatory Certification

  • Declaration of Conformity
    Compliant with EN62479, EN301 489-1, EN301 489-3, EN300-330. FCC Part 15 and RSS-210 certified (module)
  • Radio
    IEC/EN/UL/CSA 62368-1 compliant Applicable marks: CE, TÜV-GS, C-UL-US, RCM
  • Safety
    Emission: Class A compliant according CISPR 32, FCC part 15 and ICES-003 Immunity: CISPR 35 compliant

EMC

  • Environmental
    WEEE, RoHS directive 2011/65/EU, REACH, CE

Software

  • Supported RIPs
    ONYX Graphics, Caldera, EFI, PrintFactory, ColorGATE, ErgoSoft, Shiraz, AGFA, SAI.
  • API
    Colorado API for 3rd party vendors
