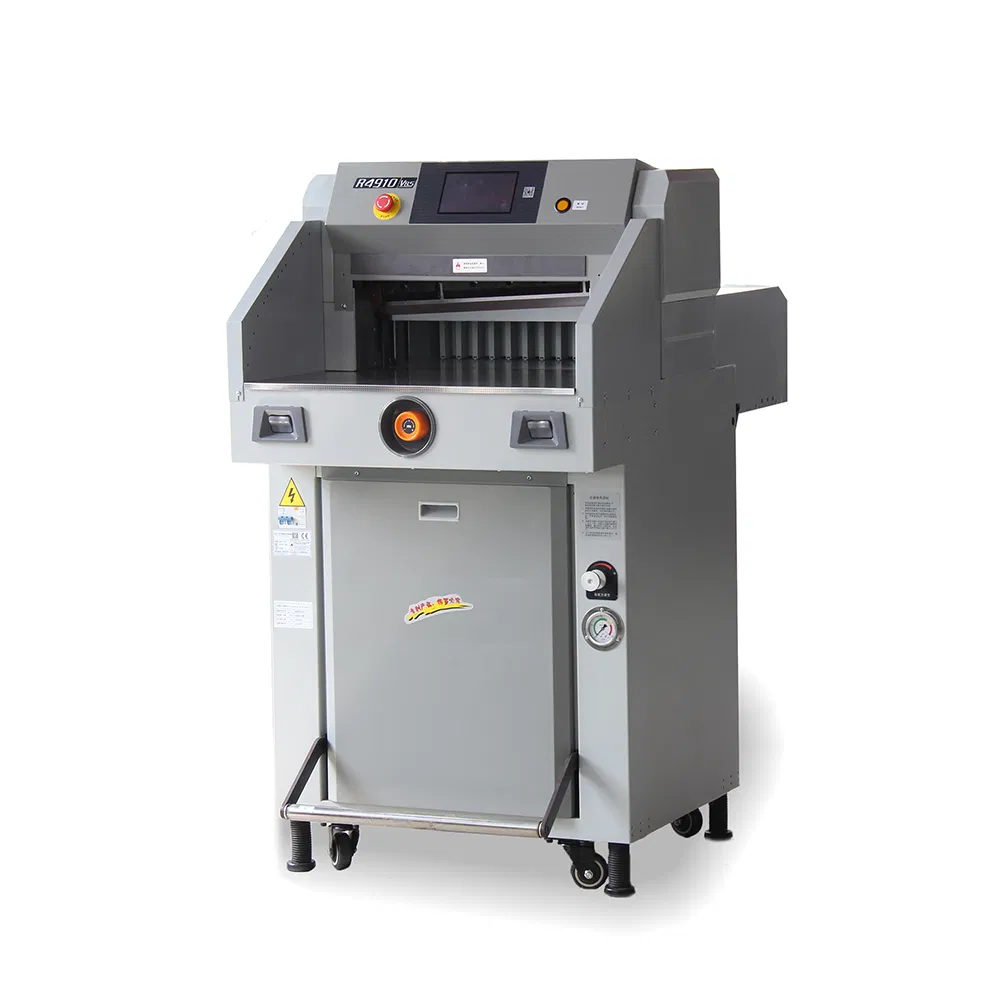

Hydrullic Paper Cutter
Multifunctional operating system with multiple cutting modes
Normal mode/Equal division mode/Programming mode/Fully automatic cutting
Direct cutting by inputting data
Circular cutting by inputting the same or different sets of data
Inputting different data to meet multiple cutting requirements
Automatic cutting according to pre-recording without pressing the cutter button
- Hydraulic clamp and cutting Drive
- Heavy duty structure,higher accuracy
- CE Standard
- safety latch, safety light curtain
- Double Auto Breaker satety design
- centralized control circuit for easy maintenance
- Auto Measure function
- Foldable and disasseble back table
- Backgauge motor: Step motor
- Backgauge speed:3.5m/minute
Description
Description
| Model | R5210V7 Hydralic cutter |
| Max cutting size(mm) | 520*520 |
| Max cutting thickness(mm) | 100 |
| Min pushing size(mm) | 20 |
| Pushing accuracy | ±0.1 |
| Cutting accuracy | ±0.2 |
| Touch screen | 7 inch |
| Programs | √ |
| Ball assist table | / |
| Pressing | hydraulic+pedal |
| Cutting | Hydraulic |
| Pushing Motor | stepping motor |
| Pushing speed(m/min) | 3.5 |
| Voltage | 220V(11V)±10%0HZ(HZ) |
| Power(w） | 2000 |
| Dimension(mm) | 1440*800*1430 |
